LD 2 Air Cargo Containers
A cornerstone of modern air cargo operations, LD-2 containers—commonly designated as DPE and DPN Unit Load Devices (ULDs)—remain a benchmark for reliability, efficiency, and long-term value. Designed with an advanced single-piece polymer shell, these containers deliver exceptional structural integrity and impact resistance, outperforming traditional materials such as aluminum, polycarbonate, and fiberglass in durability and lifecycle performance.

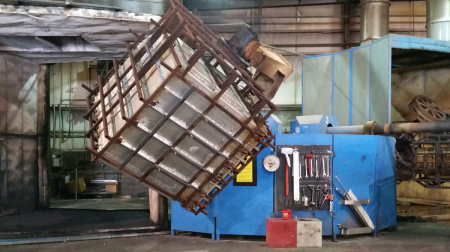

Manufactured using a precision rotational molding process, the seamless shell construction significantly reduces common failure points, lowering maintenance requirements and minimizing operational downtime. The result is a more dependable asset that supports consistent on-time performance while helping control total cost of ownership.
Beyond strength and resilience, LD-2 containers are offered in a wide range of standard and custom color options, enabling clear visual identification and streamlined fleet management. This added flexibility enhances ramp efficiency, improves asset tracking, and supports stronger operational control.
For airlines and logistics providers focused on performance, longevity, and measurable cost savings, LD-2 air cargo containers represent a strategic investment—delivering reliable protection in demanding environments while contributing directly to operational and financial efficiency.

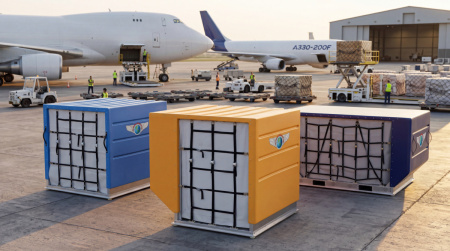

LD 2 DPE Air Cargo Container Gallery
Click any of the images below to open a larger photo gallery version
LD 2 DPE Technical Specifications
| Technical Specifications | ||
| TSO | N/A | |
| IATA | LD-2/DPE | |
| Spec. | AS 1677 | |
| Granger Aerospace P/N | GA2-0102-2 | |
| Base size | 1534 mm x 1562 mm | 60.4 in x 61.5 in |
| Height | 1625 mm | 64 in |
| Roof length | 1562 mm | 61.5 in |
| Max. gross weight | 1224 kg | 2700 lb |
| Internal volume | 3.5 cu m | 123 cu ft |
| External volume | 3.65 cu m | 129 cu ft |
| Door opening | 1010 mm x 1480 mm | 39.75 in. x 58.25 in |
| Tare weight from | 72.1 kg | 159 lb |

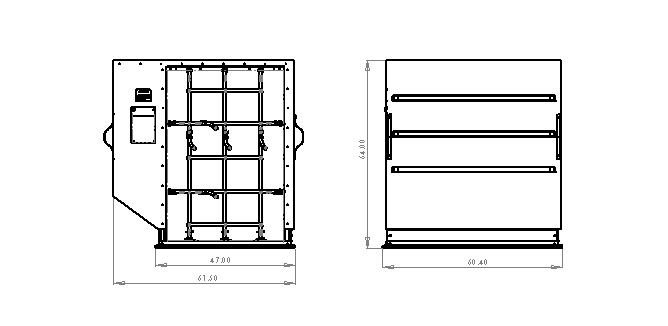

LD 2 DPE Dimensional Drawing
LD 2 DPE Features:
- Granger Aerospace Products Air Cargo Containers are uniquely constructed from a combination of aluminum and durable LLDPE for enhanced performance.
- The LD-2 Body is weldable for easier and more secure repairs.
- These containers are lighter than most standard models, helping reduce overall aircraft weight.
- Granger Aerospace Products cargo containers are designed for outstanding robustness and durability.
- No aluminum body panels to patch or replace, minimizing maintenance requirements.
- Lighter weight results in less downtime and lower repair costs, leading to a reduced total cost of ownership.
- Features an enhanced threshold for increased operational efficiency.
- Fewer fasteners need replacement, simplifying ongoing maintenance.
- Innovative design enables faster, more efficient repairs.
- Fewer spare parts are needed in stock, streamlining inventory management.
- Granger Aerospace Products offers alternative solutions to meet your ULD requirements.
- Customers benefit from fuel savings by using these robust, lightweight, and cost-efficient containers.
- Granger Aerospace is dedicated to offering more choices and greater flexibility to customers.
LD 2 Air Cargo Container Links
LD 2 DPE/DPN Information
LD 2 DPN Technical Specifications
| Technical Specifications | ||
| IATA | C90d | |
| SAE AS 36100 class | LD-2/DPN | |
| Granger Aerospace P/N | NAS 3610 (2K2C) | |
| Base size | 1534 x 2438 mm | 79.0 in x 60.4 in |
| Height | 1625 mm | 64.0 in |
| Roof length | 2438 mm | 79.0 in |
| Max. gross weight | 2449 kg | 3500 lb |
| Internal volume | 3.5 cu m | 125 cu ft |
| External volume | 4.7 cu m | 166 cu ft |
| Door opening | 2298 x 1532 mm | 53.13 in x 57.75 in |
| Tare weight from | 118.8 kg | 262 lbs. |
LD 2 DPN Dimensional Drawing
LD 2 DPN Features:
- Granger Aerospace Products Air Cargo Containers are uniquely constructed from a combination of aluminum and durable LLDPE for enhanced performance.
- The LD-2 Body is weldable for easier and more secure repairs.
- These containers are lighter than most standard models, helping reduce overall aircraft weight.
- Granger Aerospace Products cargo containers are designed for outstanding robustness and durability.
- No aluminum body panels to patch or replace, minimizing maintenance requirements.
- Lighter weight results in less downtime and lower repair costs, leading to a reduced total cost of ownership.
- Features an enhanced threshold for increased operational efficiency.
- Fewer fasteners need replacement, simplifying ongoing maintenance.
- Innovative design enables faster, more efficient repairs.
- Fewer spare parts are needed in stock, streamlining inventory management.
- Granger Aerospace Products offers alternative solutions to meet your ULD requirements.
- Customers benefit from fuel savings by using these robust, lightweight, and cost-efficient containers.
- Granger Aerospace is dedicated to offering more choices and greater flexibility to customers.
LD 2 Air Cargo Container Links
LD 2 DPE/DPN Information
